Lets see what ur workin with
#1
Senior Member
SL Member
Thread Starter
iTrader: (2)
Join Date: Mar 2010
Location: Upstate, NY
Posts: 660
Lets see what ur workin with
im sittin here, overly bored at work and decided to see how a general discussion would go. basically lets see/hear on all your setups, power gains, future goals, any unfortunate mishaps with boost, future mods and so on and so forth. this will also be imho, a good guide for noobs to get a general idea of what other people have, and give them a good starting point on their journey towards boost.
i guess ill start it off
stock engine internals (for now)
precision 5431b t3/t4
tial 38mm wastegate
hks ssqv
top mount mani
2.5" downpipe
70mm tsudo s2 catback
fmic w/ 2.5" piping
walboro 255lph fuel pump
dw 550cc injectors
aem fic (tuned by kenny @ "the shop" in norwalk, ct)
dezod oil feed/return lines
ngk 1 step colder plugs
on my current setup, im at 299 hp/270tq.
future plans: (maybe by next summer it'll be done)
je pistons
manley rods
darton sleeve
port&polish head
bc stage 2 cams
valves/valve spring&retainers (not sure which as of yet)
quaife lsd
cc lightened flywheel
stronger clutch (not sure what brand to go w yet)
and im sure there will be other things that i can think of along the way.
i guess ill start it off
stock engine internals (for now)
precision 5431b t3/t4
tial 38mm wastegate
hks ssqv
top mount mani
2.5" downpipe
70mm tsudo s2 catback
fmic w/ 2.5" piping
walboro 255lph fuel pump
dw 550cc injectors
aem fic (tuned by kenny @ "the shop" in norwalk, ct)
dezod oil feed/return lines
ngk 1 step colder plugs
on my current setup, im at 299 hp/270tq.
future plans: (maybe by next summer it'll be done)
je pistons
manley rods
darton sleeve
port&polish head
bc stage 2 cams
valves/valve spring&retainers (not sure which as of yet)
quaife lsd
cc lightened flywheel
stronger clutch (not sure what brand to go w yet)
and im sure there will be other things that i can think of along the way.
Last edited by PeArLwHiTe07tC; 08-25-2011 at 06:14 PM. Reason: dyno sheet added
#2
lets see i first boosted my car in 08 with a TT simple kit the turbo died after about a year
i have a 5857B t3/t4 the "b" means it has a B compressor cover since thats all that fits on the simple kit.
2" hot side piping
2.5cold side piping
walboro 255lph fuel pump
Greddy Type RS BoV
DW700cc injectors
Tial 38MM WG
Ptuning 3" turbo back exhaust.
i got tuned at first by MAC autosports in Colorado
then all my tuning after that was done by Garabaldy
my plans for the future are..... sekrit for now. excpet for the plans to build my motor.
my mishaps have been the short lived turbo. i've broken my driver side axle but i think that was due to a tear in the CV boot because when i pulled it off there was only dust inside of it. never found a tear though. i sheered 3rd gear off my stock tranny i'm on my 3rd clutch master cylinder 2nd clutch. i've had it pretty easy compared to some on here.
i have a 5857B t3/t4 the "b" means it has a B compressor cover since thats all that fits on the simple kit.
2" hot side piping
2.5cold side piping
walboro 255lph fuel pump
Greddy Type RS BoV
DW700cc injectors
Tial 38MM WG
Ptuning 3" turbo back exhaust.
i got tuned at first by MAC autosports in Colorado
then all my tuning after that was done by Garabaldy
my plans for the future are..... sekrit for now. excpet for the plans to build my motor.
my mishaps have been the short lived turbo. i've broken my driver side axle but i think that was due to a tear in the CV boot because when i pulled it off there was only dust inside of it. never found a tear though. i sheered 3rd gear off my stock tranny i'm on my 3rd clutch master cylinder 2nd clutch. i've had it pretty easy compared to some on here.
#3
bored at work also so I will contribute,
One of the few boosted Tc's in MN
Stock engine internals
Descendant Manifold
Turbonetics 55 trim .63a/r
Tial MV-S Wastegate
RC 750cc injectors
1 Step colder plugs
HKS BOV
Stock exhaust with TRD axle back
AEM FI/C Tuned by Shane at DB Performance
265whp 245tq 9psi on Dyno Dynamic
Future Mod:
255lph Fuel pump
3 inch exhaust
E85 Tune
blow-thru set up
Up the BOOST !!!
No mishap on my behalf yet

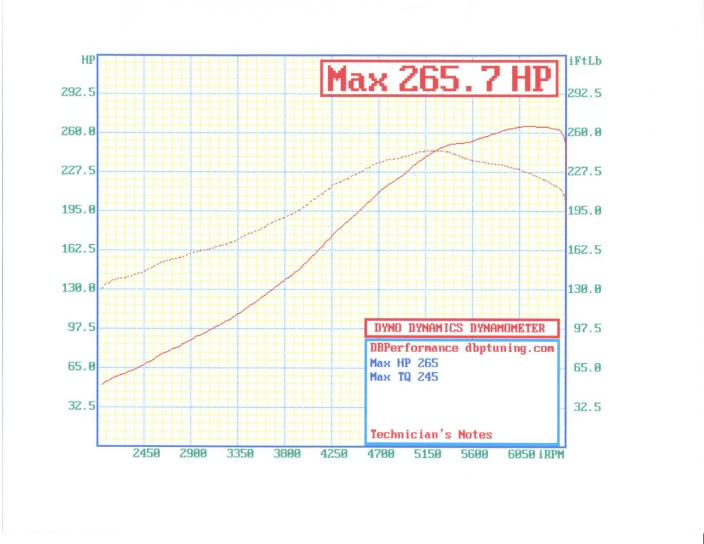

dyno sheet:
One of the few boosted Tc's in MN
Stock engine internals
Descendant Manifold
Turbonetics 55 trim .63a/r
Tial MV-S Wastegate
RC 750cc injectors
1 Step colder plugs
HKS BOV
Stock exhaust with TRD axle back
AEM FI/C Tuned by Shane at DB Performance
265whp 245tq 9psi on Dyno Dynamic
Future Mod:
255lph Fuel pump
3 inch exhaust
E85 Tune
blow-thru set up
Up the BOOST !!!
No mishap on my behalf yet
dyno sheet:
Last edited by MnTc; 08-25-2011 at 05:38 PM.
#4
Man, I could right a book on this. lol
Sept 2008
ZPI kit put on and tuned by ESP Performance at 12 psi.
A few manifold cracking issues, and 1 blown 16g turbo.
300hp
Sept 2010
Swapped the ZPI kit for a custom blow-through kit with a Boostflow manifold and downpipe combo with 60 trim turbo.
350 hp
Tuned AWESOME by Mike aka M-tuned, to 12-14 psi. Mike and I pushed the limits of the stock motor on this kit being that I had a built motor ready to go in. Eventually cylinder 1 rod had enough and came through the block.
May 2011-present
Fully Built Cylinder Head and Non-sleeved Short Block.
Dezod Fuel return system
750cc Injectors
OS Giken LSD
Competition Clutch and Lightweight Flywheel.
Descendant turbo kit and 3" exhaust.
371hp 377 ft lbs on 17 psi tuned by Eric P at the World Motorsports East shop.
I first boosted with 24,000 miles on the car, and the motor didnt pop until 55,000. After being abused pretty good on the stock motor. The car is not my daily driver, so when I drove it, it was driven hard.
I would like to upgrade the turbo and get a 44mm wastegate fabbed onto the manifold being as we experieced moderate boost creep.
I love how the car is right now. SAFE, usable power.
Sept 2008
ZPI kit put on and tuned by ESP Performance at 12 psi.
A few manifold cracking issues, and 1 blown 16g turbo.
300hp
Sept 2010
Swapped the ZPI kit for a custom blow-through kit with a Boostflow manifold and downpipe combo with 60 trim turbo.
350 hp
Tuned AWESOME by Mike aka M-tuned, to 12-14 psi. Mike and I pushed the limits of the stock motor on this kit being that I had a built motor ready to go in. Eventually cylinder 1 rod had enough and came through the block.
May 2011-present
Fully Built Cylinder Head and Non-sleeved Short Block.
Dezod Fuel return system
750cc Injectors
OS Giken LSD
Competition Clutch and Lightweight Flywheel.
Descendant turbo kit and 3" exhaust.
371hp 377 ft lbs on 17 psi tuned by Eric P at the World Motorsports East shop.
I first boosted with 24,000 miles on the car, and the motor didnt pop until 55,000. After being abused pretty good on the stock motor. The car is not my daily driver, so when I drove it, it was driven hard.
I would like to upgrade the turbo and get a 44mm wastegate fabbed onto the manifold being as we experieced moderate boost creep.
I love how the car is right now. SAFE, usable power.
Last edited by BOOSTit06; 08-24-2011 at 08:12 PM.
#5
stock block
frankenstien turbo kit
turbonetics cast manifold
turbonetics downpipe
garret 57 trim .63 ar
tial 38 mm wastegate
HKS limited black BOV
PTuning 630cc injectors
Dezod I/C piping
Don't know what IC
PTuning return fuel system
1 step colder plugs
CC s-pipe
ARK n1 catback 2.5inch from turbo back.
AEM FIC tuned by dan/guru at.. all over metro detroit.
custom clutch by falcon clutch
fidanza 9.5lbs flywheel
was 286whp/286tq on dyno before return fuel system
probably around 300 whp now though.
on roughly 10 psi
also, i've never had any issues with the tune. This is in michigan where it rains one day, hot and sunny the next, snowing the day after, and then the next day has all of that combined lol
all of my mishaps came with the install. basically all i can say is, take your time. i put the wrong fitting on my oil feed so once i started my car after having my tuner drive a half hour to me (well he was driving godzilla so probably only like 10 minutes for him) oil started pouring out all over my turbo and floor so that was that for the day.
got that fixed and then when we were doing pulls on the freeway, i had a stripped tbolt clamp that i thought was tight enough (and it wasn't) it kept blowing off once it would hit 5 psi.
I just had to replace my axle, that's probably the only thing that has come from the turbo that isn't my fault lol
frankenstien turbo kit
turbonetics cast manifold
turbonetics downpipe
garret 57 trim .63 ar
tial 38 mm wastegate
HKS limited black BOV
PTuning 630cc injectors
Dezod I/C piping
Don't know what IC
PTuning return fuel system
1 step colder plugs
CC s-pipe
ARK n1 catback 2.5inch from turbo back.
AEM FIC tuned by dan/guru at.. all over metro detroit.
custom clutch by falcon clutch
fidanza 9.5lbs flywheel
was 286whp/286tq on dyno before return fuel system
probably around 300 whp now though.
on roughly 10 psi
also, i've never had any issues with the tune. This is in michigan where it rains one day, hot and sunny the next, snowing the day after, and then the next day has all of that combined lol
all of my mishaps came with the install. basically all i can say is, take your time. i put the wrong fitting on my oil feed so once i started my car after having my tuner drive a half hour to me (well he was driving godzilla so probably only like 10 minutes for him) oil started pouring out all over my turbo and floor so that was that for the day.
got that fixed and then when we were doing pulls on the freeway, i had a stripped tbolt clamp that i thought was tight enough (and it wasn't) it kept blowing off once it would hit 5 psi.
I just had to replace my axle, that's probably the only thing that has come from the turbo that isn't my fault lol
#6
Senior Member
SL Member
Thread Starter
iTrader: (2)
Join Date: Mar 2010
Location: Upstate, NY
Posts: 660
boost creep will get ya...lol...i have a 9psi spring in my tial right now and im slowly creepin up to 12 psi at higher rpms. idk if its the wastegate, or the manifold right now or a combination of both but my car is tuned for it, but catch 22 is that i have 121k on my motor. so far i have about 11k boosted miles on it and it seems to be holdin up well.
#7
Senior Member
SL Member
Thread Starter
iTrader: (2)
Join Date: Mar 2010
Location: Upstate, NY
Posts: 660
bored at work also so I will contribute,
One of the few boosted Tc's in MN
Stock engine internals
Descendant Manifold
Turbonetics 55 trim .63a/r
Tial MV-S Wastegate
RC 750cc injectors
1 Step colder plugs
HKS BOV
Stock exhaust with TRD axle back
AEM FI/C Tuned by Shane at DB Performance
265whp 245tq 9psi on Dyno Dynamic
Future Mod:
255lph Fuel pump
3 inch exhaust
E85 Tune
blow-thru set up
Up the BOOST !!!
No mishap on my behalf yet
One of the few boosted Tc's in MN
Stock engine internals
Descendant Manifold
Turbonetics 55 trim .63a/r
Tial MV-S Wastegate
RC 750cc injectors
1 Step colder plugs
HKS BOV
Stock exhaust with TRD axle back
AEM FI/C Tuned by Shane at DB Performance
265whp 245tq 9psi on Dyno Dynamic
Future Mod:
255lph Fuel pump
3 inch exhaust
E85 Tune
blow-thru set up
Up the BOOST !!!
No mishap on my behalf yet
#8
yea I know with those mods i would of saw more hp when i went to tune my car, but I'm done modding my car for the year but over winter going to work on it, gonna get exhaust and fuel pump and maybe some more stuff haha but E85 here in MN it is plentiful, I know 5 gas station within 10 miles of where I live have it (only in the city though) out of the city and good luck finding one lol
Last edited by MnTc; 08-24-2011 at 08:04 PM.
#9
current mods:
stock internals
ptuning ss turbo kit
ptuning 3" exhaust v2
ptuning motor mount
dw550cc
walbro 255 fuel pump
act hd clutch
quaife lsd
ptp t3/t4 turbo blanket
koyo radiator
aem fic tuned by kenny tran @ jotech motorsports, TX... 10psi 313whp/282tq
future mods:
maybe ptuning ss return fuel system...
stock internals
ptuning ss turbo kit
ptuning 3" exhaust v2
ptuning motor mount
dw550cc
walbro 255 fuel pump
act hd clutch
quaife lsd
ptp t3/t4 turbo blanket
koyo radiator
aem fic tuned by kenny tran @ jotech motorsports, TX... 10psi 313whp/282tq
future mods:
maybe ptuning ss return fuel system...
#10
Senior Member
SL Member
Thread Starter
iTrader: (2)
Join Date: Mar 2010
Location: Upstate, NY
Posts: 660
looks like we got some decent setups goin on here. lets keep em comin... lets try to add up some pics and dyno sheets. i just posted mine in my profile pics. ill try to get on this thread asap.
#11
https://www.scionlife.com/forums/sho...uning+official
#12
current mods:
stock internals
ptuning ss turbo kit
ptuning 3" exhaust v2
ptuning motor mount
dw550cc
walbro 255 fuel pump
act hd clutch
quaife lsd
ptp t3/t4 turbo blanket
koyo radiator
aem fic tuned by kenny tran @ jotech motorsports, TX... 10psi 313whp/282tq
future mods:
maybe ptuning ss return fuel system...
stock internals
ptuning ss turbo kit
ptuning 3" exhaust v2
ptuning motor mount
dw550cc
walbro 255 fuel pump
act hd clutch
quaife lsd
ptp t3/t4 turbo blanket
koyo radiator
aem fic tuned by kenny tran @ jotech motorsports, TX... 10psi 313whp/282tq
future mods:
maybe ptuning ss return fuel system...
#13
yeah, but they are very pricey... I was gonna go to Tony @ T1 but he doesn't tune piggyback ecu (he doesn't believe in piggyback), he tunes standalone only. ONe of the best tuner in TX (hands down). what is your current setup?
#16
Current Mods:
Stock Block and Head
Turbonetics E50 stage 2
Evoultion WG
Raptor BOV
DW 550's
Tradstone Intercooler Kit
Unichip (PreTuned)
NGK 1 step colder plugs
2.5 turbo back (no muffler)
HP/TQ Unknown
Running 10lbs
Future:
Get on the dyno and get some numbers
Install AEM FIC N Tune
New Clutch ( 6 Puk sprung)
Stock Block and Head
Turbonetics E50 stage 2
Evoultion WG
Raptor BOV
DW 550's
Tradstone Intercooler Kit
Unichip (PreTuned)
NGK 1 step colder plugs
2.5 turbo back (no muffler)
HP/TQ Unknown
Running 10lbs
Future:
Get on the dyno and get some numbers
Install AEM FIC N Tune
New Clutch ( 6 Puk sprung)
Last edited by StreetSweeper; 08-26-2011 at 03:07 AM.
#17
Senior Member
SL Member
Thread Starter
iTrader: (2)
Join Date: Mar 2010
Location: Upstate, NY
Posts: 660
Current Mods:
Stock Block and Head
Turbonetics E50 stage 2
Evoultion WG
Raptor BOV
DW 550's
Tradstone Intercooler Kit
Unichip (PreTuned)
NKG 1 step colder plugs
2.5 turbo back (no muffler)
HP/TQ Unknown
Running 10lbs
Future:
Get on the dyno and get some numbers
Install AEM FIC N Tune
New Clutch ( 6 Puk sprung)
Stock Block and Head
Turbonetics E50 stage 2
Evoultion WG
Raptor BOV
DW 550's
Tradstone Intercooler Kit
Unichip (PreTuned)
NKG 1 step colder plugs
2.5 turbo back (no muffler)
HP/TQ Unknown
Running 10lbs
Future:
Get on the dyno and get some numbers
Install AEM FIC N Tune
New Clutch ( 6 Puk sprung)
#18
Like in my other posts im not a huge fan of the lack of tuners but the car runs safe with only a few hick ups and for right now im extremely happy ill be getting some tweaks from Aaron at Unichip in the next few weeks. I have a AEM sitting here that just needs a harness made then that can go in but im in no rush!
